How ECUTEK Tuning Works

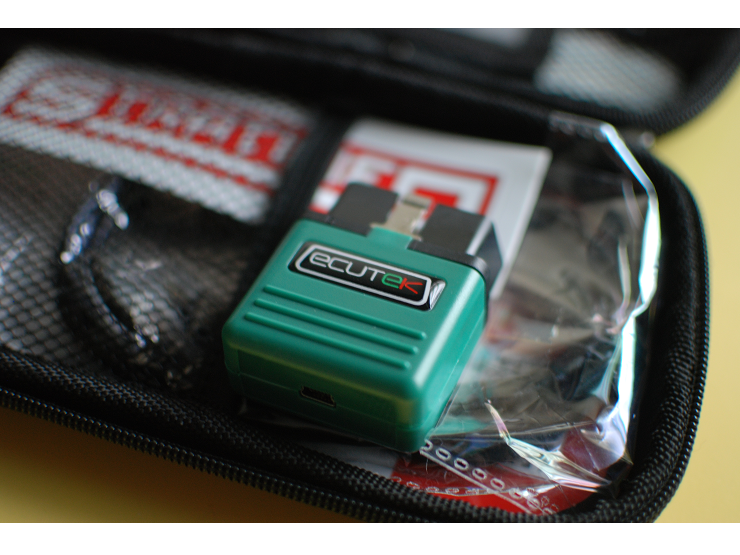

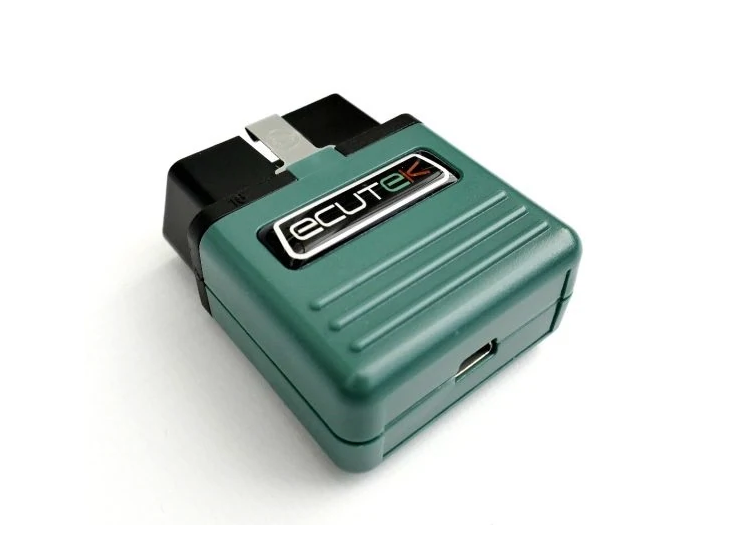

- ECU Connect Device: EcuTek Flashes the ECU via an ECU Connect dongle. This dongle plugs into your OBD port and uses bluetooth to allow you to live view parameters, check CELs, and datalog.
- Vehicle License: EcuTek Licenses each ECU that we want to tune. So if your ECU is already licensed, all you need to do is purchase a tune. Otherwise you need a license.
- Phone Flash Activation: You CAN flash the ECU using the bluetooth ECU Connect dongle if you also choose PhoneFlash. PhoneFlash is available for 2008+ Subaru, Mazda, BMW. If you don't select PhoneFlash, you can still use the dongle to view parameters and log but you won't be able to receive map files remotely from us.
- Note that the Phone Flash feature is not available for the Subaru K-Line 2004 - Flash with ProECU instead.
- The PhoneFlash App is on both the Google and Apple App stores and it is free to download.
- Remote Activation via ProECU is the alternative solution for Subaru K-Line 2004.
- If you are bringing your car into our shop to tune, you DON'T NEED ECU Connect Device or Remote / PhoneFlash Activation. We use our own tool to flash the ECU. You do NEED to purchase a license for the ECU unless it was already licensed via EcuTek. However if you want to view parameters, datalog, or flash at home you need the ECU Connect dongle (logging, viewing) and PhoneFlash (flashing).
TL DR: If you are a remote tune customer and have never flashed via EcuTek you will need the ECU Connect Device + Vehicle License + Remote / Phone Flash Activation
***
Standard features
- Datalogging - Display and record factory and RaceROM diagnostic parameters, including engine and transmission simultaneously*
- High speed - Logging rates up to 50% faster than ProECU and as fast as 200Hz on some vehicles (Nissan 370Z factory protocol)*.
- RaceROM integration - Driver interaction with RaceROM features*
- Read & Clear DTCs - Not only the engine ECU, but other modules too, such as for the TCM, ABS etc*
- Dashboards - Display real-time data from any parameter in a set of graphical displays using circular gauges, bar graphs or text.
- Performance Analyser - Test and share the results online
- Archive - Stores log files and performance test results for sharing with tuners or friends – directly from within the app
- ECU Reset - Plus clearing of ECU learned values*
- ECU Info - Provides information about the vehicle concerned
RaceROM Features
ECU Connect works with the latest RaceROM to integrate your device with new and existing features, including:
- Custom Datalogging - Log numerous RaceROM live data parameters including fuel injection volume, per-cylinder knock, injector angle, G-sensors, wheel-slip ratio and more *
- Map Switching - Switch between different modes using the app, and create and name each mode using ProECU *
- Valet Mode - Reduce your car’s power output for when someone else is to drive it *
- Launch Control - Adjust the launch RPM using the app *
- Boost Controller - Set the maximum allowed boost pressure for each Map Switch mode
Custom Inputs
Five new inputs that can be configured and controlled using ECU Connect. Within ProECU these can be set up as a Slider control, a Numerical value or a Switch, and provides the following possibilities...
- Adjustable Boost - Set min/max boost with driver-adjustable slider control
- Adjustable Traction Control - Use a slider control for live variation of traction control gain
- Live Adjustments - Use slider or numerical control to add/remove ignition timing, adjust fuelling, vary cam timing or alter custom map outputs
- Power Output Adjustment - Make live adjustments or engage solenoids or relays.
- Valet Mode - Turn this feature on or off using your mobile device.
